Public SSH Key

« list of all parameters

Applicable for:
ProviderAzure, AWS, GCP, VMware vSphere(1)
TAB - SectionINSTANCES - Master Configuration, Instance Group(s)

(1) On selecting VM Initialization Type desribed here.

Overview

To login to your cluster master or worker nodes via SSH, create a key pair within your provider console and select the name of the key pair in this field. You can login to your master or worker nodes once the cluster is created.

The Public SSH Key is:

  • Optional:
    • For AWS. More details can be found here.
    • For GCP. More details can be found here.
  • Required for Azure.

How to specify

To specify public SSH key for a cluster master node or instance group:

  1. On the left menu, click Credentials.

  2. Click Add Credentials. Add Credentials The ADD CREDENTIALS dialog is displayed.

  3. In the ADD CREDENTIALS dialog, set Credentials Type to “SSH Public Key”. The dialog is updated to display the SSH public key credentials specific fields.

  4. Enter Credentials Name.

  5. Paste in SSH Public Key.

  6. Click Save Credentials.

  7. Initiate cluster creation (Azure, AWS, GCP).

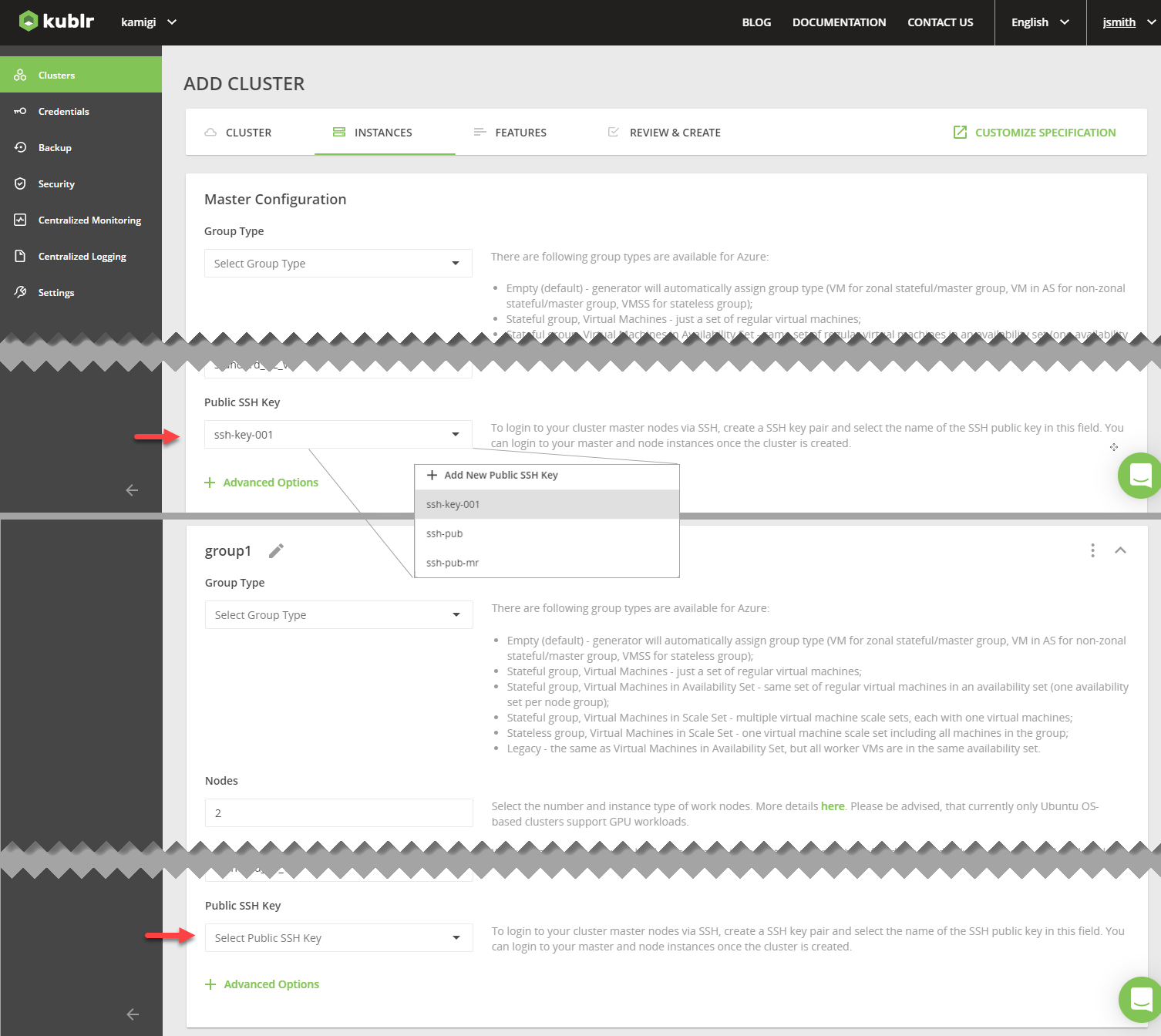

  8. Use the INSTANCES tab:

    • To set the SSH public key for master node, scroll to the Master Configuration section.
    • To set the SSH public key for instance group, scroll to this instance group section.
  9. From the SSH Public Key list select previoulsy created SSH public key credentials. Specify SSH public key

Participate in scenarios

See also

  • This documentation: search for “ssh key” or alike to find more information about using the parameter.
