General Settings

Below you can find descriptions for general settings, used by all clusters and platforms or by some of them depending on the Provider being used. These settings are specified on the special Settings page, availale on the left menu.

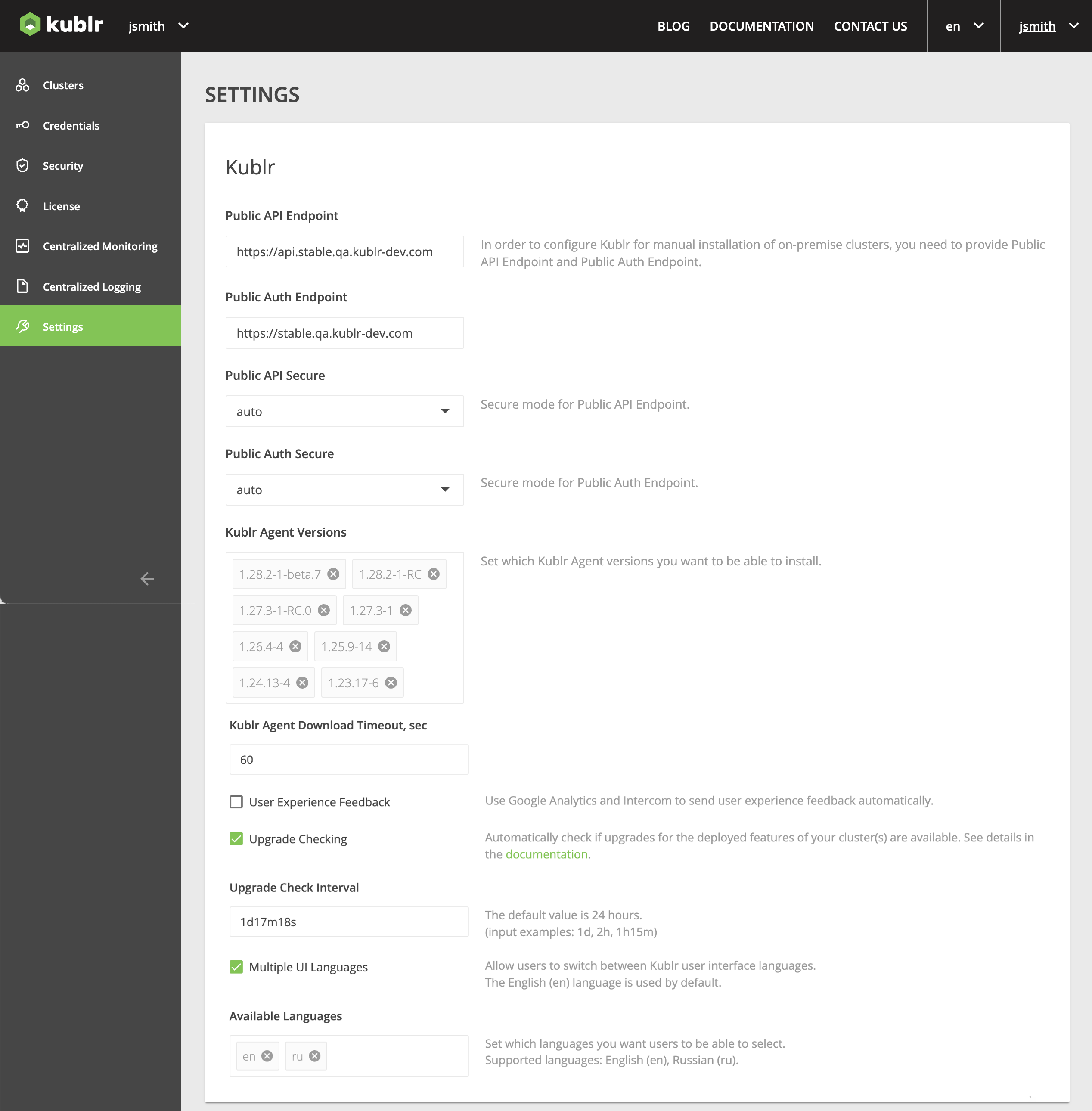

Settings

Endpoints

Used by clusters and platforms:
ProviderOn-Premises, manual installation

In order to configure kublr for manual installation of on-premises clusters, you need to provide:

  • Public API Endpoint
  • Public Auth Endpoint

You can also set a secure mode for the API and Auth endpoints, possible modes are:

  • auto (default)
  • secure
  • insecure

Kublr Agent Versions

Used by clusters and platforms:
ProviderAll

When creating clusters, you need to set the Kubernetes Version parameter for it (should be selected from the list). This parameter is in correspondence with the Kublr Agent Versions.

Sometimes, you may have a specific version of Kublr (for example, prepared specifically for you by the Kublr team) and corresponding Kubernetes Version is not in the list by default. If so, obtain the version number of Kublr agent from Kublr support and enter it into the system as described below:

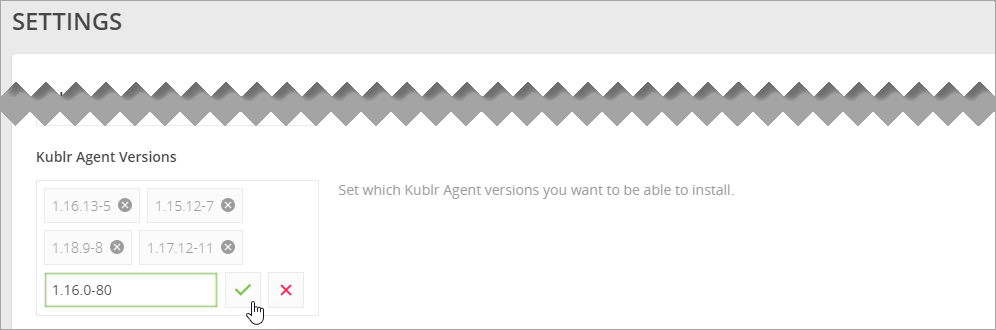

  1. In the Kublr Agent Versions, add required agent version. Adding Kublr Version

  2. Click Save Changes.

    The system will automatically detect the Kubernetes Version which corresponds to entered Kublr Agent version and it will be added to the list.

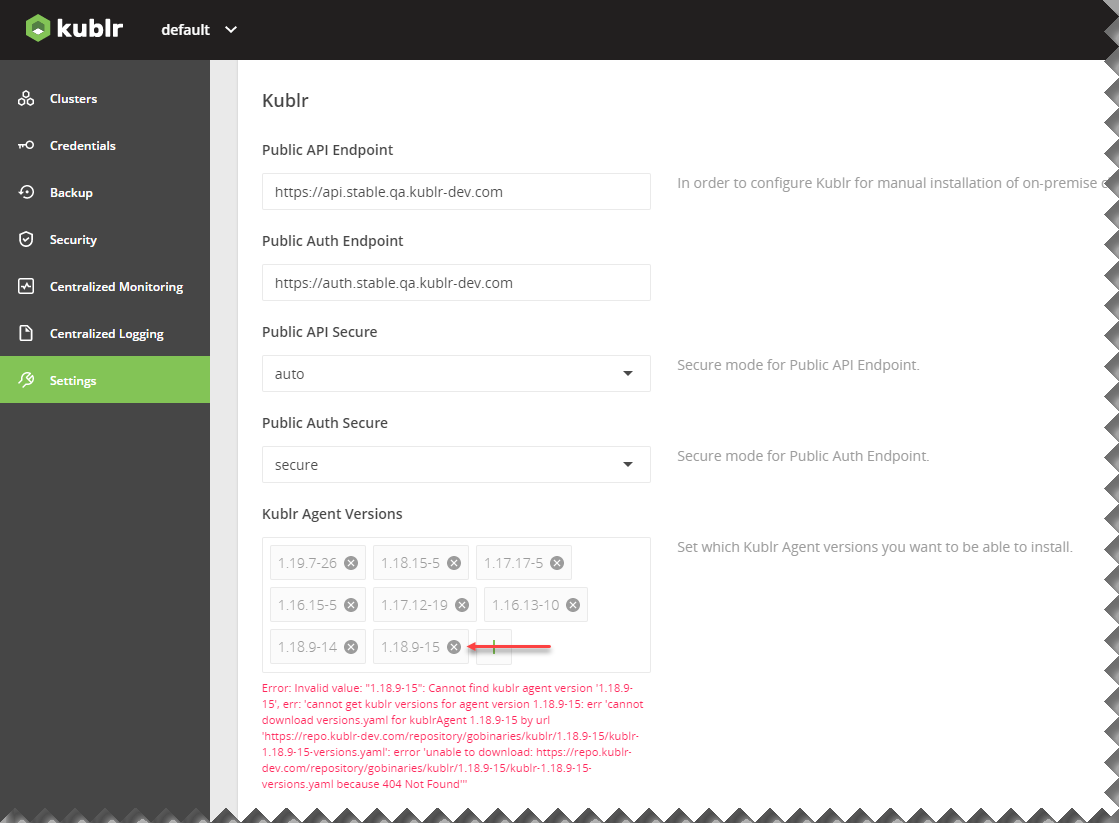

Note that the parameter is validated: if the added agent version is not presented in repository, the error message is displayed:

Adding Kublr Version


To fix, do one of the following:
  • Remove the invalid version before saving.
  • Replace the invalid version with a suported one (see the list of supported versions in Kublr Release Notes: select your version, then check Components versions > Kubernetes, view “Kublr Agent” data).
  • Add missing version to your pribate binary repository: in Kublr Release Notes: select your version, then check Supported Kubernetes versions, use the appropriate download link).

Go Binaries Repo URL

Used by clusters and platforms:
ProviderAll, manual installation

In order to configure Kublr for AirGap installation, you need to provide Go Binaries Repo URL.

Enable Cluster Backup

Used by clusters and platforms:
ProviderAWS

Cluster Backup is technical preview feature supported only for AWS clusters.

Enable User Experience Feedback

Used by clusters and platforms:
ProviderAll

Use Google Analytics and Intercom to send user experience feedback automatically.
